45-Gallon Flammable Safety Cabinet | NFPA 30 & OSHA Compliant | Model SSM100045 | SUPER

Brand Name: SSL
Model Number: SSM00045
MOQ: 1
Delivery Time: 20-55 DAYS
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001& ISO14001&CE
Packaging Details:
Standard Paper Box on the Plywood Pallet
Supply Ability:
SUPER CO LTD
Product Description

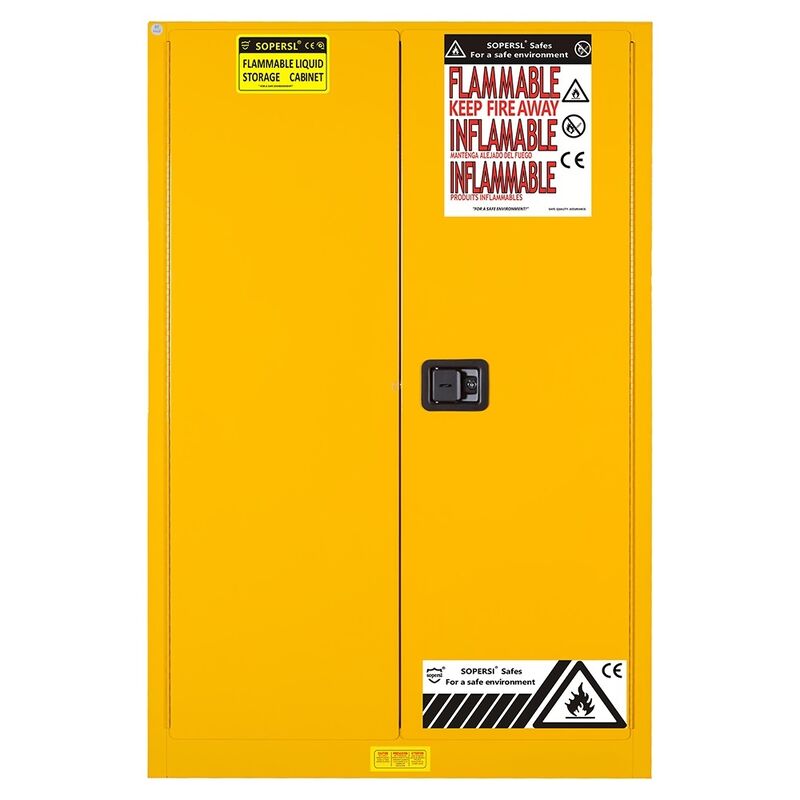

45-Gallon Flammable Safety Cabinet | NFPA 30 & OSHA Compliant | Model SSM100045 | SUPER

The SUPER 45-Gallon Flammable Safety Cabinet (170L capacity) is designed for compliant storage of Class I, II, and III flammable liquids. Featuring 16-gauge double-wall steel construction, 38mm insulating air space, dual 2-inch flash arrestor vents, and a 2-inch spill containment sump, it meets NFPA 30 and OSHA 1910.106 standards.

Key Specifications

Specification Details
Model SSM100045
Capacity 45 Gallons / 170 Liters
Compliance NFPA 30, OSHA 1910.106
Certifications CE, FM
Material 16-Gauge Steel
Construction Double-Wall Welded
Insulation 1.5” (38mm) Air Space
Vents Dual 2” with Flash Arrestors
Spill Sump 2” (50mm) Leak-Proof
Shelves 2 Adjustable (55mm increments)
Exterior Size 165 × 109 × 46 cm
Interior Size 155 × 101 × 38 cm
Net Weight 138 kg
Load Capacity 350–500 lbs

Fire-Resistant Double-Wall Steel Construction

16-gauge reinforced steel with 38mm insulating air space.

Advanced Ventilation with Flash Arrestors

Dual 2-inch vent ports prevent flame propagation.

Spill Containment System

Integrated 50mm sump prevents hazardous liquid leakage.

Regulatory Compliance

Certified to NFPA 30 and OSHA 1910.106 standards.

Application

Industrial Manufacturing Plants

Chemical Warehouses

Paint & Ink Storage Facilities

Laboratories & Research Centers

Hazardous Liquid Compliance Zones
