Product Details
Place of Origin: CHINA
Brand Name: SSL
Certification: ISO9001
Model Number: BSC7-1100IIA2
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: Standard Paper Box on the Plywood Pallet
Delivery Time: 25-30 Days
Payment Terms: T/T or L/C at sight
Supply Ability: 1500 per month
Product Name: |
Biological Safety Cabinet |
Material: |
304 Stainless Steel |
Applications: |
Potentially Infectious Materials |
Power(W): |
1200 |
Display: |
VFD Display |
Filter: |
Two HEPA Filter |
Product Name: |
Biological Safety Cabinet |
Material: |
304 Stainless Steel |
Applications: |
Potentially Infectious Materials |
Power(W): |
1200 |
Display: |
VFD Display |
Filter: |
Two HEPA Filter |

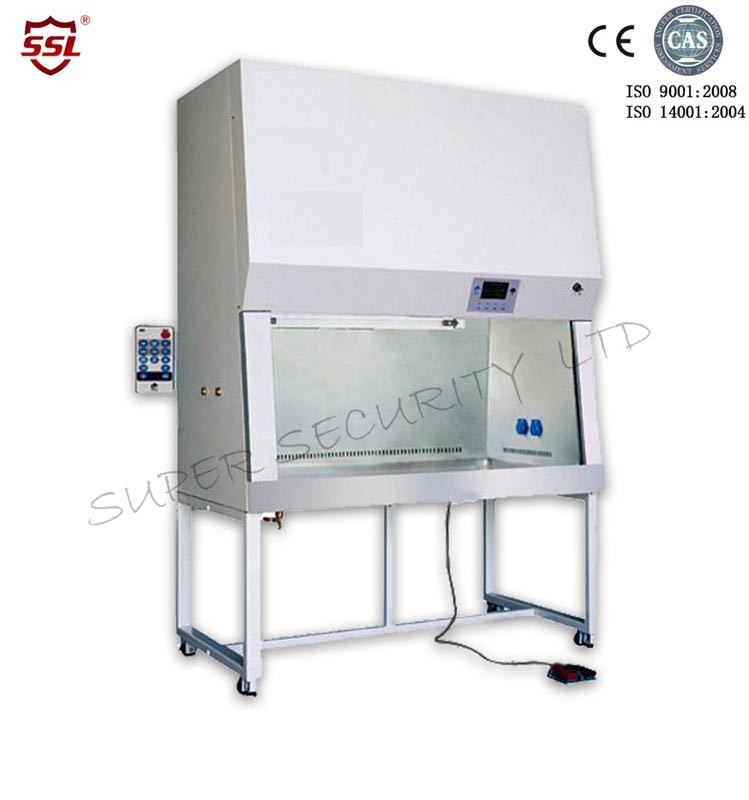

Biology Biologic Safety Cabinet For School , Laboratory Fume Cupboards With Filter Life Inquiry
Applications:
Biological safety cabinets are used to provide primary containment in the laboratory when the investigator is using potentially infectious materials.
Class II: The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
Specifications:
Model |
BSC7-1100II A2 |
Internal size(mm) |
900×600×660 |
External size(mm) |
1100×850×2200 |
Tested Opening |
200 mm |
Working Opening |
400 mm |
Inflow Velocity |
0.53 m/s |
Down Flow Velocity |
0.33 m/s |
Filter |
Two HEPA filter 99.999% efficient(0.3 microns) |
Blower |
2 |
Front Window |
Two-layer toughened glass >5mm |
Noise |
≤65 dB |
UV lamp |
20W×1 |
Fluorescent Lamp |
21W×1 |
Lighting (Lux) |
800 |
Power(W) |
1200 |
Water and Gas Tap |
Water Tap:1 Gas Tap: 1 |
Waterproof Socket |
2 |
Display |
VFD display |
Control System |
Microprocessor |
Airflow System: |
70% air recirculation,30% air exhaust |
Material |
Work zone: 304 stainless steel |
Body: Expoxy coated cold rolled steel |
|
Base (optional) |
Height:635mm |
Caster Wheel |
Directional wheel |
Clean Level |
100 |
Electrical Parameter |
110~240V/50~60Hz (optional) |
Net weight(kg) |
240 |
Gross weight(kg) |
290 |
Package (mm) |
1250×1050×1870 |
Standard Configuration |
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp |
Optional Accessory |
Armrest, Air curtain tester, Formalin fumigation sterilizer, Ammonium hydrogen carbonate neutralizer |
1.Remote control. The operator need not to contact the biological safety cabinet directly, it’s favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2.Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3.Work area surrounded by negative pressure.
4.Timer function
5.VFD display
6.Filter life inquiry
Competitive Advantage:
According to the performance criteria:
US Standard ANSI/NSF49:2002 ; European Standard EN12469:2000 ;Chinese Standard YY0569-2005
Remote control VFD Control Panel
