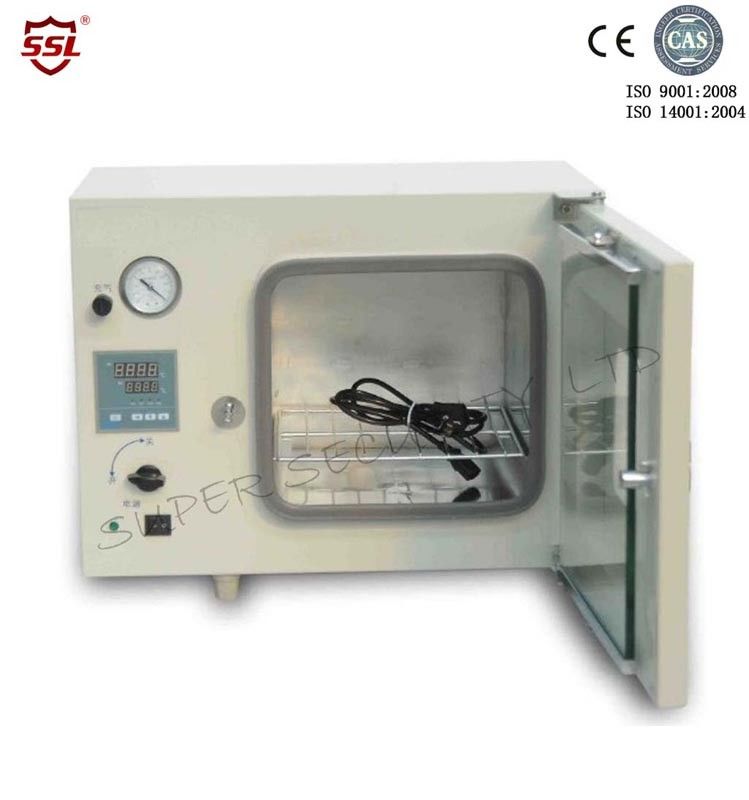

White Small Bench Top Vacuum Drying Oven For Agriculture , 500W 20L

Product Details

Place of Origin: CHINA

Brand Name: SSL

Certification: ISO9001&14001

Model Number: VDO9020

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiation

Packaging Details: Standard Paper Box on the Plywood Pallet

Delivery Time: 15-20 Days

Payment Terms: T/T or L/C at sight

Supply Ability: 1500 per month

Get Best Price
Highlight:

lab vacuum oven

,

high vacuum oven

Color:
White
Cubage:
20L
Application:
Biochemistry, Pharmacy
Material:
Steel
Color:
White
Cubage:
20L
Application:
Biochemistry, Pharmacy
Material:
Steel
White Small Bench Top Vacuum Drying Oven For Agriculture , 500W 20L

White Small Bench Top Vacuum Drying Oven For Agriculture , 500W 20L



Scope of application:

Vacuum drying oven is widely applicable for drying and sterilization in fields of biochemistry, pharmacy,

medicine and health, agriculture and scientific research and environment protection. It is designed specially

for drying of material which is thermo-sensitive or decompounded and oxidative easily.



Advantages of vacuum dry technology:

  • It has follow advantages compare with the routine dry technology:
  • Vacuum environment greatly reduced the liquid boiling point which needs to drive out, therefore the vacuum dry method is applicable for heat sensitivity material;
  • For the sample that can't be dried easily, such as powder or other pellet form sample, using vacuum dry method may efficiently shorten dry time;
  • Various complex structures of machinery ministry or other porous sample process are used of vacuum dry method after washing, and Completely dry without leaving any residue;
  • Use more safe: under vacuum or inertia condition, completely eliminate the possibility that the oxide heated and explode;
  • Compare with the normal drying depended on air cycle, Powder samples will not be blown or moved by air





Control Feature:

Function of parameters memory and electricity incoming recovery when data lost because of power cut or system halted.





Product Feature:

  • Adopts originated domestic streamline arc design, the outer is made of cold rolled steel plate, the surface is static lacquered;
  • Temperature control system adopts microcomputer single chip technology, with the functions of temperature control, timing and over-temperature alarm;
  • Double screens of high light nixie tube display, the value displayed well, predominant performance, set and adjust parameters by touch type buttons;
  • With the functions of timing and time;
  • The interior chamber is made of stainless steel material, the design of corners semicircular is easy to clean;
  • The tightness of door can be adjusted by user optionally, the silicone rubber door seal whole shaped, ensure the high vacuum degreed in chamber;
  • The chamber is quadrate to maximize the volume, the door adopts steel bulletproof double glass which is easy for observation.





Applications:

It is widely applicable for drying and sterilization in fields of biochemistry, pharmacy, medicine and health, agriculture and scientific research and environment protection. It is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily.

Interior





White Small Bench Top Vacuum Drying Oven For Agriculture , 500W 20L 0

White Small Bench Top Vacuum Drying Oven For Agriculture , 500W 20L 1

Specifications:

Model

VDO9020

Electrical Requirements

220V 50Hz

TemperatureRange

RT+10~250°C

Temperature Stability

±1°C

Vacuum Degree

<133pa

Input power

500W

Cubage

20L

Interior Dimension (mm)W×D×H

300×300×275

Overall Dimension (mm)W×D×H

580×450×450

Shelves per Chamber (Momal)

1pc





Option:

1.Programmable LCD temperature Controller

2.Inert Gas Vlave.

Features:

1) Stainless steel chamber. Double Layer tempered glass door for clear observation.

2) Air-tightness of chamber door guarantee in-chamber high vacuum.

3) PID controller with accuracy and reliablility.

4) Vacuum oven is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily, widely in fields of biochemistry, pharmacy, medicine and health, agriculture and scientific research and environment protection.

5) Can be filled with inert gases,which is especially for a rapid drying of some compund material.



Competitive Advantage:

Function of parameters memory and electricity incoming recovery when data lost because of power cut or system halted.





Model

Overall Size H×W×D(mm)

Interior size H×W×D(mm)

Voltage

Temperature

range

Temperature

stability

Vacuum degree

Power

(W)

Cubage (L)

Shelf

(pcs)

VDO9020

450×580×450

275×300×300

220V,50HZ

10~250°C

±0.5°C

<133Pa

500

20

1

VDO9030

460×630×520

300×320×320

220V,50HZ

10~250°C

±0.5°C

<133Pa

800

30

1

VDO9050

535×720×525

345×415×370

220V,50HZ

10~250°C

±0.5°C

<133Pa

1400

50

2

VDO9090

1470×615×590

450×450×450

220V,50HZ

10~250°C

±0.5°C

<133Pa

2400

90

2

VDO9210

1750×720×820

600×560×640

220V,50HZ

10~250°C

±0.5°C

<133Pa

3600

210

3

VDO9250

910×1050×760

600×700×600

220V,50HZ

10~250°C

±0.5°C

<133Pa

4000

250

3
