Product Details
Place of Origin: CHINA
Brand Name: SSL
Certification: ISO9001
Model Number: DO10420
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: Standard Paper Box on the Plywood Pallet
Delivery Time: 15-20 Days
Payment Terms: T/T or L/C at sight
Supply Ability: 1500 per month
Product Name: |
Laboratory Drying Oven |
Cubage: |
420L |
Application: |
Biochemistry, Pharmacy, Medicine And Health |
Input Power: |
4000W |
Controller: |
LCD Temperature Controller |
Material: |
Steel |
Product Name: |
Laboratory Drying Oven |
Cubage: |
420L |
Application: |
Biochemistry, Pharmacy, Medicine And Health |
Input Power: |
4000W |
Controller: |
LCD Temperature Controller |
Material: |
Steel |

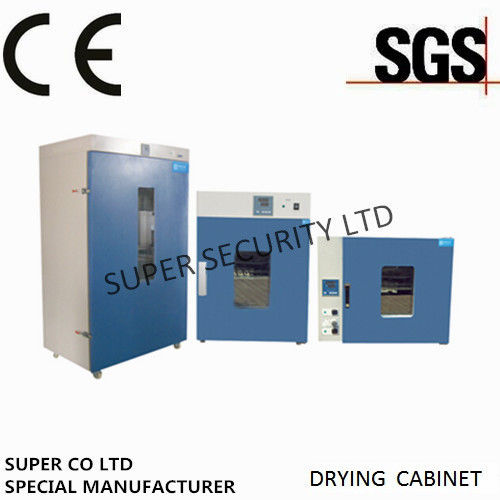

4000W 420L Laboratory Drying Ovens For Biochemistry , Pharmacy
Applications:
It is widely applicable for drying and sterilization in fields of biochemistry, pharmacy, medicine and health, agriculture and scientific research and environment protection. It is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily.
Specifications:
|
Model |
DO10420 |
|
Electrical Requirements |
220V 50Hz |
|
TemperatureRange |
RT+10～250°C |
|
Temperature Stability |
±1°C |
|
Temperature control |
0.1°C |
|
Ambient Temperature |
+5～40°C |
|
Input power |
4000W |
|
Cubage |
420L |
|
Interior Dimension (mm)W×D×H |
600×550×1300 |
|
Overall Dimension (mm)W×D×H |
740×730×1670 |
|
Shelves per Chamber (Normal) |
3pcs |
|
TimingRange |
1～9999min |
Accessories:
Programmable LCD temperature controller
Inert gas valve
Under cabinet counter
Water filters
Vacuum pump
Automatic Vacuum Controller
|
Features: |
|
1)Latest PID controller |
|
2)stainless steel chamber. Double Layer glass door, larger viewing window. |
|
3)Uniform distribution of air temperature. |
|
4)Forced-air convection. |
|
5)Suitable for storing: drying, curing, constant temperature testing, high temperature ageing and sterilization in industrial and mining enterprises, laboratories and scientific research institutes. |
|
6) Parameters memory and electricity incoming recovery when data lost because of power cut or system halted. |
|
7) Independent temperature-limiting alarm system ensures experiments run safely. (option) |
|
8) RS485 connector is option which can connect computer to record the parameters and the variations of temperature. (option) |
Competitive Advantage:
Function of parameters memory and electricity incoming recovery when data lost because of power cut or system halted.
Versatile usage; Ergonomic design; Energy Efficient; Long life; Low maintenance; Calibration and protocol Documentation
|
Model |
Overall Size H×W×D(mm) |
Interior size H×W×D(mm) |
Shelf (pcs) |
voltage |
Temperature Range |
Temperature Stability |
Power (W) |
|
DDO10023 DDO10025 |
440×580×480 |
270×300×300 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
500/1050 |
|
DDO10053 DDO10055 |
520×700×530 |
350×420×350 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
750/1050 |
|
DDO10123 DDO10125 |
720×830×530 |
550×550×350 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
1500/1740 |
|
DDO10203 DDO10205 |
770×880×730 |
600×600×550 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
500/1050 |
|
DO10030 DO10035 |
630×480×500 |
320×340×320 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
750/1050 |
|
DO10070 DO10075 |
760×550×530 |
450×400×350 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
1050/1500 |
|
DO10140 DO10145 |
860×590×730 |
550×450×550 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
1500/2000 |
|
DO10240 DO10245 |
1060×640×780 |
750×500×600 |
2 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
2100/2500 |
|
DO10420 DO10425 |
1670×740×730 |
1300×600×550 |
3 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
4000/4500 |
|
DO10620 DO10625 |
1690×940×780 |
1300×800×600 |
3 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
4500/6000 |
|
DO10920 DO10925 |
1900×1140×780 |
1600×1000×600 |
4 |
220V,50HZ |
10~250°C/ 10~300°C |
±0.5°C |
6000/7500 |
