Home > products > Chemical Storage Cabinet > Indoor / Outdoor Vented Chemical Storage Cabinets For Flammable Liquids , 20gallon

Indoor / Outdoor Vented Chemical Storage Cabinets For Flammable Liquids , 20gallon

Product Details

Place of Origin: R.P. of China

Brand Name: SOPERSL

Certification: CE.SGS

Model Number: SSM100020P

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: 190

Packaging Details: PAPER BOX

Delivery Time: 10-15DAYS

Payment Terms: TT,LC AT SIGHT

Supply Ability: 1000PCS/MONTH

Get Best Price
Highlight:

chemical safety cabinet

,

petrol storage cabinets

Product Name:
Chemical Storage Cabinets
Material:
All Steel
Color:
Yellow
Size:
Standard Size Or Customized
Feature:
Fire Proof
Application:
Flammable Liquid
Product Name:
Chemical Storage Cabinets
Material:
All Steel
Color:
Yellow
Size:
Standard Size Or Customized
Feature:
Fire Proof
Application:
Flammable Liquid

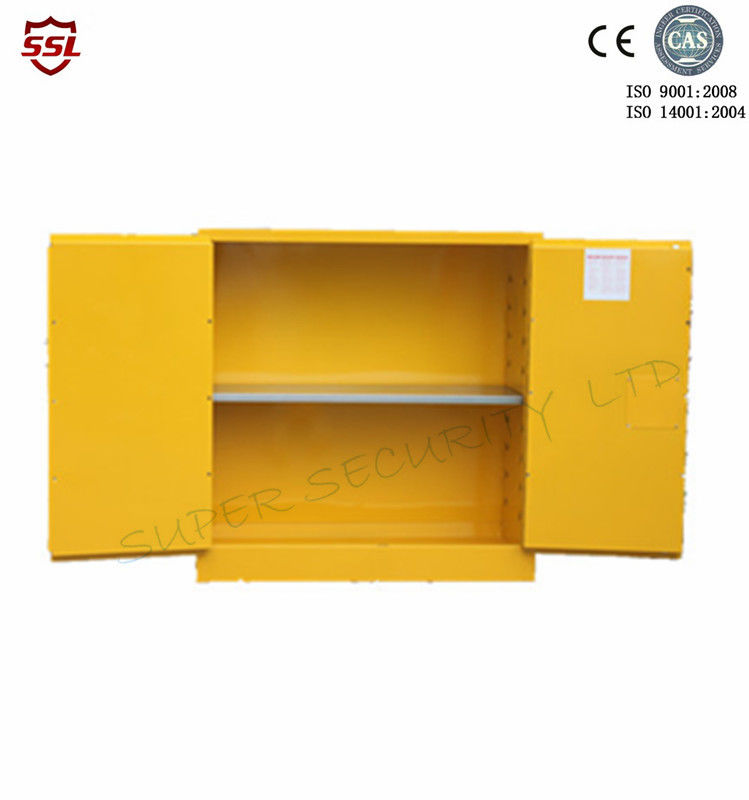

Indoor / Outdoor Vented Chemical Storage Cabinets For Flammable Liquids , 20gallon





Indoor / Outdoor Vented Chemical Storage Cabinets For Flammable Liquids , 20gallon




Applications:

Flammable Liquid Storage Cabinets are designed for the safety storage of flammable liquid containers. These highly visible and durable yellow powder-coated cabinets features a red "Flammable - Keep Fire Away" warning on the front doors.

Main Specifications of 20 Gallon Chemical Storage Cabinets
SSM100020P-Waste storage Cabinets
20-gallon
1 Shelf (Adjustable)
1 door, Manual - Can choose self-locking
Ext. Sizes H*W*D(mm/in): 1120×590×460mm/ 44×23×18 in
Int. Sizes H*W*D(mm/in): 1020×510×380mm/ 40×20×15 in
Weight: 66Kgs/ 145bs





  • Cabinet Size:590mm(W)x460mm(D)x1120mm(H)
  • Material: Sturdy 1.2mm(16 gauge) double walled steel with 40mm(1.5'') of insulating air space
  • Material Thickness:1.2mm
  • All cabinets built to comply with FM, OSHA
  • Designed to storage all Class 3 liquids
  • Distinct safety signs and directions.
  • Highly visible warning label" Flammable-Keep Fire Away".
  • All welded construction versus spot welded construction.
  • Durable and chemical resistant, powder coat paint finish, inside and outside
  • Retains high gloss look and minimizes the effect of corrosion and humidity.
  • Dual vents with built-in flash arresters strategically placed at bottom and opposite top.
  • Liquid-tight containment sump.
  • Continuous piano hinge doors to open 180 degree
  • 50mm (2'') leak-proof sump to contain spills.
  • Zinc steel shelves are adjustable on 55mm(2.2'') space for versatile storage.
  • Dual vents with built-in flash arresters strategically placed at bottom and opposite top.
  • Welded shelf hangers interlock with shelf to offer maximum "no slip" stability and no flimsy bracket to lose.
  • Earthing point to guard against static electricity dischange.
  • Three-point mutual locking system with high-strength stainless steel bullet latches
  • Exclusive paddle lock for extra security. Two keys lockable.
  • Minimal air-gaps provide better protection.



Market Segments

  •  Charter Schools
  • Higher Education - University, CollegesF
  • ood Beverage facilities
  • Life Science
  • Bio-Technology
  • Industrial Research & Development
  • Medical research
  • Water treatment Plants

To convert gallons to liters, multiply gallons x 3.78541



Our Advantage




  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience


Instroduction


SUPER CO LTD offers a full line of cleanroom-safe polypropylene cabinets for today's most demanding manufacturing and laboratory environments.
Each product stands up to the most stringent cleanroom / safety requirements.
Now you can have years of clean, safe storage of your hazardous acid / corrosive chemicals and materials with out the rusting due to metal construction or the delaminating of wood core products.
Polypropylene  is the material of choice for acid and corrosive cabinet chemical storage.
All acid cabinets are welded inside and out, have PP safe locking and a 50mm deep spill containment base area to provide a 100% liquid-tight safe environment.
Custom designs and sizes are available.




Flammable & liquid storage cabinets, 2 gallons to 90 Gallon capacity, are available based on the ultimate size of the cabinet selected. All interior and exterior surfaces, including shelves, are finished with industry standard yellow powder coating.



Special corrosion resistant powder coated finish on all interior and exterior surfaces, including shelves, offers the end users an excellent protective storage vechile for acids and and other corrosives. Powder coating gives superior protection against chemical attack in event of a spill or splash. For additional protection, each cabinet is supplied with high density polypropelene trays for the shelves and bottom of cabinet.

Not recommended for use with Sulfuric, Nitric or Hydrochloric Acid.

See  the Poly Acid-Corrosive Cabinets that are suitable for use with these acids.



Model

Door Types

Description

Overall Size H×W×D(mm)

Overall Size H×W×D(inch)

Capacity

(gal/L)

Numbe of shelf(pcs)

N.W.

(kg)

SSM100004P

Manual

Under-Bench cabinet with 1 door

560×430×430

22×17×17

4/15

1

34

SSM100012P

Manual

Under-Bench cabinet with 1 door

890×590×460

35×23×18

12/45

1

60

SSM100015P

Manual

Under-Bench cabinet with 1 door

1120×590×460

44×23×18

15/57

1

66

SSM101015P

Manual

Under-Bench cabinet with 1 door

910×610×550

36×24×22

15/57

1

65

SSM100016P

Manual

Under-Bench cabinet with 1 door

1120×610×460

44×24×18

16/61

1

68

SSM100017P

Manual

Working cover cabinet with 2 doors

610×1090×460

24×43×18

17/64

1

70

SSM100019P

Manual

Under-Bench cabinet with 1 door

910×760×550

36×30×22

19/72

1

68

SSM100020P

Manual

Under-Bench cabinet with 1 door

1120×590×460

44×23×18

20/76

1

66

SSM101020P

Manual

Under-Bench cabinet with 2 doors

1120×1090×300

44×43×12

20/76

1

66

SSM100022P

Manual

Vertical cabinet with 1 doors

1650×590×460

65×23×18

22/83

2

90

SSM101023P

Manual

Under-Bench cabinet with 1 door

910×920×550

36×36×22

23/87

1

66

SSM101030P

Manual

Working cover cabinet with 2 doors

890×910×610

35×36×24

30/114

1

100

SSM100030P

Manual

Working cover cabinet with 2 doors

1120×1090×460

44×43×18

30/114

1

100

SSM100031P

Manual

Under-Bench cabinet with 1 door

910×1220×550

36×43×18

31/117

1

105

SSM100040P

Manual

Working cover cabinet with 2 doors

1120×1090×460

44×43×18

40/151

3

100

SSM100045P

Manual

Tall cabinet with 2 doors

1650×1090×460

65×43×18

45/170

2

138

SSM100054P

Manual

Tall cabinet with 2 doors

1650×600×870

65×24×34

54/204

3

148

SSM100060P

Manual

Tall cabinet with 2 doors

1650×860×860

65×34×34

60/227

2

165

SSM100090P

Manual

Tall cabinet with 2 doors

1650×1090×860

65×43×34

90/340

2

190
