| Place of Origin: | CHINA |
| Brand Name: | SSL |
| Certification: | ISO9001&14001 |
| Model Number: | FH7-1200 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | crate box |
| Delivery Time: | 10-15 Days |
| Payment Terms: | T/T or L/C at sight |
| Supply Ability: | 1500 per month |
| Protection Class: | Class I | Protection Type: | IP 20 |
|---|---|---|---|
| Air Velocity (m/s): | ≥0.5m/s | Noise: | ≤60dB(A) |
| Pipe Collar: | Φ290 | Exhaust Duct: | PVC, Standard Length: 4 Meters |
| High Light: | exhaust fume hoods,chemistry fume hood,Class I Chemical Fume Hood |
||

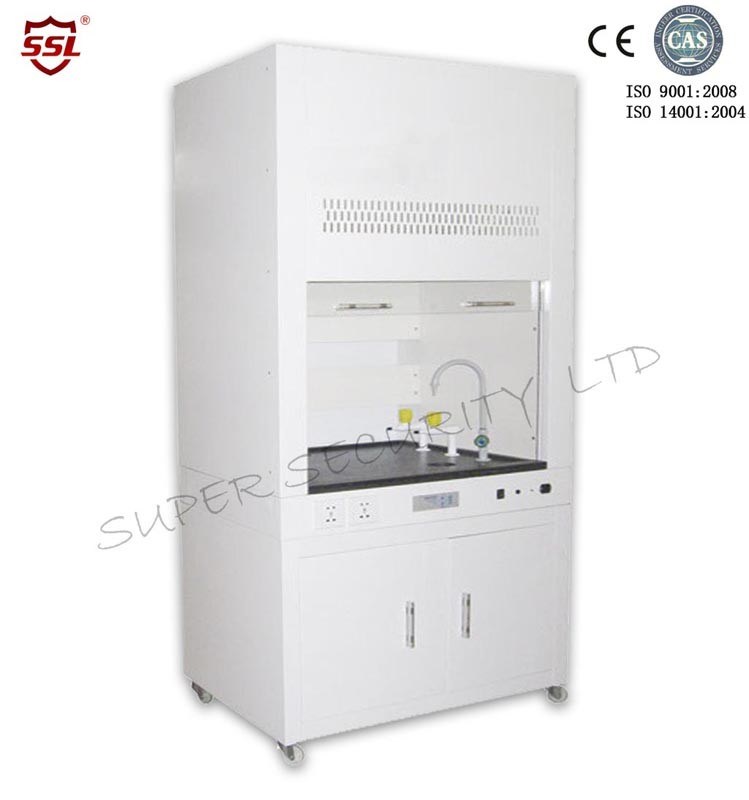

Exhaust Class I Chemical Fume Hood Cold-roll Steel 800W - 1400W IP 20 Laboratory Hood
|
Application |
| FH series Fume hoods are the first defense to minimize chemical exposure to research workers. They are considered the primary means of protection from inhalation of hazardous vapors. |
|
Production Description |
|
|
Name |
Value |
|
Brand |
SSL |
|
Model |
FH7-1200 |
|
Base Cabinet (Optional) |
Height is 620mm, the exterior size include the cabinet height |
|
Protection Class |
Class I |
|
Protection Type |
IP 20 |
|
Air Velocity (m/s) |
≥0.5m/s |
|
Noise |
≤60dB(A) |
|
Pipe Collar |
Φ290 |
|
Pipe Strap |
1pc |
|
Fluorescent Lamp |
21W*1 |
|
UV Lamp |
21W*1 |
|
Exhaust Duct |
PVC, standard length: 4 meters |
|
Blower |
Centrifugal fan, speed adjustable. The fan inside the Fume Hood |
|
Glass window |
Two layer toughen glass, 5mm thickness; Motor control, height adjustable |
|
Power supply |
110-220V/50-60Hz(optional) |
|
Power consumption |
800W-1400W |
|
Standard Accessory |
Water tap: One Water cup: one Gas tap: two Air tap: one Water proof socket: two |
|
Material |
Exterior body :Cold-roll steel sheets, coated with any-bacteria power Interior: Adopts high grade melamine board with good acid and alkali resistance function Work table: Using Solid Chemical-Resistant physiochemical board |
|
Optional Accessory |
Filter: 1.HEPA filter 2. Carbon active Filter 3. Chemical Filter |
|
Ext. sizes(L*W*H) |
1000×750×2200mm |
|
Work size(L*W*H) |
820×620×750mm |
|
Net Weight(kg) |
230 |
|
Gross Weight(kg) |
300 |
|
Warranty |
One year |
|
Model |
FH7-1000 |
FH7-1200 |
FH7-1500 |
FH7-1800 |
|
Exterior Size(L×W×H) |
1000×750×2200 |
1200×800×2200 |
1500×800×2200 |
1800×800×2200 |
|
Work Area (L×W×H) |
820×620×750 |
1020×670×750 |
1320×670×750 |
1620×670×750 |
|
Base Cabinet |
Height is 620 mm, the exterior size include the cabinet height |
|||
|
(Optional) |
||||
|
Protection Class |
Class I |
|||
|
Protection Type |
IP 20 |
|||
|
Air Velocity (m/s) |
≥0.5m/s |
|||
|
Noise |
≤60dB(A) |
|||
|
Pipe Collar |
φ290 |
φ290 |
Φ290 |
Φ290 |
|
Pipe Strap |
1pc |
1 pc |
1pc |
1pc |
|
Fluorescent Lamp |
15W×1 |
21W×1 |
28W×1 |
36W×1 |
|
UV Lamp |
20W×1 |
21W×1 |
30W×1 |
30W×1 |
|
Exhaust Duct |
PVC, standard length: 4 meters |
|||
|
Blower |
Centrifugal fan, speed adjustable. The fan inside the Fume Hood |
|||
|
Glass window |
Two layer toughen glass, 5mm thickness; Motor control, height adjustable |
|||
|
Power supply |
110-220V/50-60Hz(optional) |
|||
|
Power consumption |
800W-1400W |
|||
|
Standard Accessory |
Water tap: One |
|||
|
Water cup: one |
||||
|
Gas tap: two |
||||
|
Air tap: one |
||||
|
Water proof socket: two |
||||
|
Material |
Exterior body : Cold-roll steel sheets, coated with any-bacteria power |
|||
|
Interior: Adopts high grade melamine board with good acid and alkali resistance function |
||||
|
Work table: Using Solid Chemical-Resistant physiochemical board |
||||
|
Optional Accessory |
Filter: 1.HEPA filter 2. Carbon active Filter 3. Chemical Filter |
|||
|
Net Weight(kg) |
200 |
230 |
280 |
330 |
