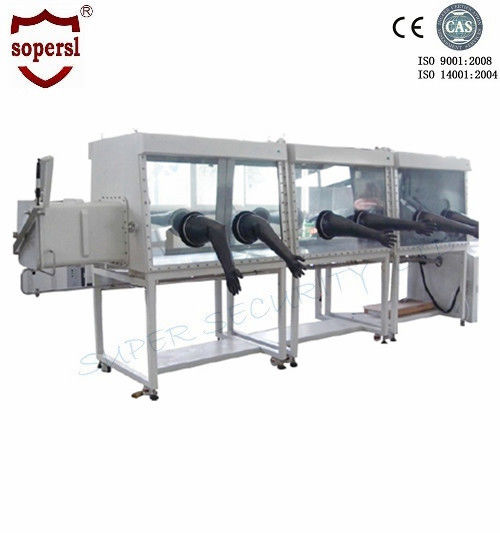

Chemical Customize Glove Box with Gas Purification System for Lab usage

Chemical Customize Glove Box with Gas Purification System for Lab usage

    • Chemical Customize Glove Box with Gas Purification System for Lab usage
    • Chemical Customize Glove Box with Gas Purification System for Lab usage
    • Chemical Customize Glove Box with Gas Purification System for Lab usage
    • Chemical Customize Glove Box with Gas Purification System for Lab usage
  • Chemical Customize Glove Box with Gas Purification System for Lab usage

    Product Details:

    Place of Origin: CHINA
    Brand Name: SOPERSL
    Certification: CE.SGS.ISO
    Model Number: VGB-1120S

    Payment & Shipping Terms:

    Minimum Order Quantity: 3
    Price: USD300-USD10000
    Packaging Details: CRATE PACKAGE
    Delivery Time: 5-10 WORKING DAYS FOR LCL
    Payment Terms: D/P, Western Union
    Supply Ability: 3000PCS/MONTH
    Contact Now
    Detailed Product Description
    Usage: Universal Testing Machine MATERIAL: SS304
    Glove Box Chamber: Customize COLOR: Grey
    POWER: ELECTRONIC Name: SUS Large Glove Box
    High Light:

    Vacuum Glove Box

    ,

    sterile glove box

    Chemical Customize Glove Box with Gas Purification System for Lab usage with two Body



    Application:



    Box and gas purification system, form a sealed environment, filled with Inert gas or nitrogen to the cabinets, and circulation to remove internal active substances, allowing the system always maintain high cleanliness and high purity inert gas environment (water, oxygen are equipment a 1 ppm below)

    Mainly for O2, H2O clearing





    Advantages:

    • Anhydrous, anaerobic and clean, ultra-clean work environment
    • The R&D and production of batteries and battery materials (lithium-ion battery, battery, solar cell, the lithium iron phosphate, etc.)
    • The R&D and manufacturing of special lamps: HID lamps, metal halide, ceramic metal halide.
    • Welding: resistance welding, TIG welding, laser welding, plasma welding, brazing.
    • OLED R&D and production.
    • The development and production of medical supplies.
    • Development and production of the super capacitor.
    • Fine chemicals, nuclear industry.
    • The new energy and new materials development and production.

    Specification:



    Model Cabinet Size (mm) The total size of equipment (mm) Configuration Description
    VGB-1120S ≈L1220+1220*W760*H900 ≈L3155*W790*H1800 Monomer type. Material:SUS304 stainless steel



    Each box

    Configuration and

    Quantity

    Technical parameters Remark
    1 standard airlock DN385×600mm

    Located in the cabinet right side,The airlock with sliding tray

    Exterior doors equipped with door booster device.

    Material: SUS304 stainless steel, aluminum alloy.

    1 tool airlock DN150×300mm

    Located in the cabinet right side,

    Material: SUS304 stainless steel.

    1 cabinet rack H = 900mm

    Carbon steel,with casters (with support feet),convenient

    mobile glovebox,fine-tune the level

    1 transparent

    visualization panel

    thickness: 12mm

    tempered glass,

    the front glass can be removed to facilitate the small device placed;

    2 Gloves Cuff diameter 8”

    Material: butyl rubber;

    Brand: NORTH

    1 Power outlet 220V,10A Located inside of the cabinet
    1 Lighting system Lamp, ballast

    Configuration fluorescent tubes

    Brand: Philips

    3 Standby

    interface

    KF40

    Configuration quick connector, located in the box

    right side, so that the liquid or gas can be easily

    and safely in and out of the cabinet.

    Material: SUS304 stainless steel

    2 HEPA filters Subject to HEPA standards Filter precision 0.3μm,installed in the cabinets,filter dust.
    2 Vacuum gauge Mechanical dial display Used to measure the vacuum value of the airlock..
    1 Foot controller Double pedal

    Control purification system to supplement and emptying

    the gas in the cabinet.

    1 Purge valve

    Automatic electro-pneumatic valve.

    Brand: BURKERT.

    1 Gas purification system

    Single purification

    the column (GP-1)

    Withwater scavenging, and oxygen scavenging function;

    German BASF the deaerator materials, UOP efficient

    absorbent materials,

    The purification system of regeneration process

    automatically control,

    Long-term, continuing to maintain gas purity:

    H20 & O2 ≤ 1ppm

    Control system Color touch screen: 6 inch

    PLC control system, touch-screen operation,

    Brand: SIEMENS;

    1 Vacuum pump Model: GLD-N201

    Exhaust volume 4L / S,

    Brand: Japan ULVAC.

    1 Pressure-sensing instrument

    -2500 ~ 2500Pa

    (relative pressure)

    Touch-screen display;

    Brand: SIEMENS.

    1Oxygen

    Transmitter

    0~1000ppm

    Touch-screen display; oxygen sensor

    Brand: American AII.

    1 Water probe 0~1000ppm

    Touch-screen display;

    Brand: British MICHELL

    1 Organic solvent filtration system

    Quality and efficient

    activated carbon

    A built 21 l activated carbon, can be replaced.
    1 Circulating fan High-speed frequency fan

    High degree of vacuum of the circulation pump;

    Brand: Taiwan DRAGANG





    Back view:



    Chemical Customize Glove Box with Gas Purification System for Lab usage 0



    Working conditions and performance indicators



    Power supply 220V(AC) 50HZ
    Maximum Power ≈3000W
    Gas the working gas: N2, Ar, He etc.inert gas
    control gas: compressed air or inert gas
    Reducing gas: working gas mixed of hydrogen (H2).

    Cabinets water content in the standard case

    (Note: The standard case is an atmospheric pressure, a constant temperature of 20 degrees)

    ≤1ppm

    Cabinets oxygen content in the standard case

    (Note: The standard case is an atmospheric pressure, a constant temperature of 20 degrees)

    ≤1ppm
    airlock withstand a minimum vacuum value ≥100pa
    The leak rate ≤0.001Vol%/ h

    Power Supply:220V(AC) 50HZ Max. Power:3000W

    Remarks:Price include Purification system &Water probe &Oxygen probe &Vacuum Pump

    Standard Accessories: Brand

    PLC & Touch Screen: Germany SIEMENS

    Water Probe: American AII

    Oxygen Probe: British MICHELL

    Vacuum Pump: Japan ULAVC
