Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment

Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment

    • Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment
    • Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment
    • Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment
    • Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment
    • Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment
  • Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment

    Product Details:

    Place of Origin: CHINA
    Brand Name: SOPERSL
    Certification: CE.SGS.ISO
    Model Number: VGB600S

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: USD300-USD10000
    Packaging Details: CRATE PACKAGE
    Delivery Time: 5-10 WORKING DAYS FOR LCL
    Payment Terms: D/P, Western Union
    Supply Ability: 3000PCS/MONTH
    Contact Now
    Detailed Product Description
    Usage: Universal Testing Machine MATERIAL: SS304
    Glove Box Chamber: 600mm(W) X 450mm(D) X 420mm(H) COLOR: WHITE, ORIGINAL
    POWER: ELECTRONIC Name: SUS Vacuum Glove Box
    High Light:

    sterile glove box

    ,

    anaerobic glove box

    Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment


    • Instroduction

    VGB600S is a  stainless steel glove box with Airlock Chamber, Gauges andvacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging.
    Heavy duty stainless steel structure glove box: a clean, air-tight, controlled environment fora widerange of researching processes in battery research, material science, chemistry, nano-research
    and semiconductor and related industries.


    • Application:

    1. MOCVD technology in the semiconductor industry. vcuum glove box
    2. Special lamps (HID) development and production.vacuum glove box
    3. Microelectronics, laser and plasma welding.vacuum glove box
    4. OLED / PLED development and production.vacuum glove box
    5. The development and production of lithium-ion batteries.vacuum glove box
    6. Inorganic / Organic Chemistry Research.vacuum glove box
    7. Metal halide / metal powder / ceramic powder research.vacuum glove box
    8. Nanotechnology research materials.vacuum glove box
    9. Catalyst.



    Advantages:
    Siemens PLC control system  with 6" touch screen display: easy to access all functions
    Recirculation system: closed loop gas circulation, oil free and vacuum tight
    Automatically pressure control: working pressure can be set in the range of +/-12mbar
    Automatically purging: easy to operate and save gas, as well safe for operating solvent.
    Equipped with 9 3/ 4"butyl gloves for immediate use
    Foot switch: box pressure can be regulated via foots witch
    Easy to access to gloves
    Data memo: automatically log system’s data
    Warranty:One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty



    Glove Box
    Chamber

    ·Dimensions: 600mm(W) x 450mm(D) x 420mm(H)
    Material: Stainless SUS304,3 MM( 11 gauge), which provide heavy duty structure for vacuum
    ·Max. Positive Pressure: 0.05 MPa
    ·Max. Vacuum Level: -0.05 Mpa

    Antechamber
    Dimension

    Stainless SUS304 , ø210mm, length =260mm, right side, with slidable tray inside

    Antechamber
    Pressure

    Max. Positive Pressure: 0.1 MPa
    Max. Vacuum Level: -0.1 Mpa

    Window
    Front Panel

    ·Dimension: 500mm(W) x 165 mm(H), Removable for putting in devices
    1 Transparent Front Panel Removable tempered window with 2 glove ports (12mm)

    Glove box1 pairs of Latex gloves, 190mm length
    Lighting System·One e Lighting System (220V, 50Hz)
    Pressure Gauge1 Pressure Gauge on Antechamber brand
    KF ConnectorStandard KF-25, KF-40 connectors and needle valves


    Option

    1. Oxygen monitoring unit (0 -1000 PPM )
    2. Moisture monitoring unit(0-1000 PPM)
    3. Automatic Pressure Controller
    4. Automatic Humidity Controller (1-99%RH)
    5. Solvent removal system
    6. Open loop / Closed-loop HEPA Filters
    7. High speed vacuum pump (4L/S High speed vacuum pump)
    8. Gas Purification System

    Application Notes

    ·Always check the joints, gloves, sealing elements, and pipelines for air-tightness before and during the operation
    ·Corrosive gases are prohibited as they will damage the sensors
    ·The inlet and outlet of the Air-lock Chamber must not be opened at the same time to prevent contamination by the external gas
    ·By closing the vacuum flange, the glove box can be vacuumed by mechanical pump up to 0.5 torr before filling inert gas, (moisture can be below 180 ppm and oxygen below 200 ppm). Then you can save at least 1-2 tank of inert gas from purging at each operation

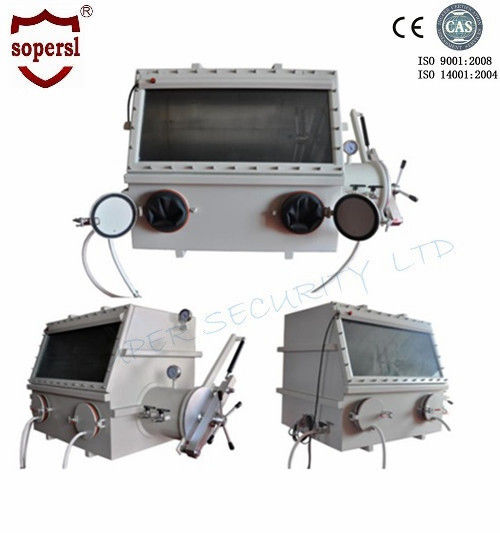

    FRONT SIDE
    Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment



    Stainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical EquipmentStainless Steel Laboratory Glove Box / Anaerobic Glove Box Medical Equipment



    STANDARD PACKAGE:


    No

    Description

    Qty.

    1

    VGB-600S SS Glove box

    1 unit

    2

    Power cable

    1 pair

    3

    Gloves (spare use)

    2 pcs

    4

    Vacuum rubber hose

    1 pcs

    5

    Sealing gasket of glove port (spare use)

    3 pcs

    6

    Sealing gasket of glove box door (spare use)

    2 pcs

    7

    Vacuum grease

    1 box

    8

    Glove clamps

    3 pcs

    9

    Hose clamps

    1 pack

    10

    Polyurethane tube

    1 pc

    11

    User’s manual CD

    1 pc
