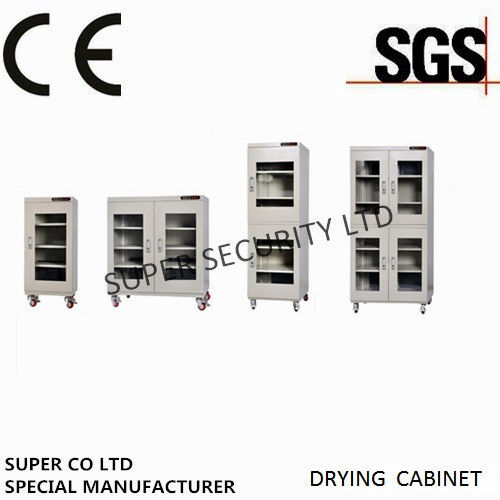

Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control

Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control

    • Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control
    • Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control
    • Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control
    • Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control
  • Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control

    Product Details:

    Place of Origin: CHINA
    Brand Name: SOPERSL
    Certification: ISO9001
    Model Number: DCN8540L

    Payment & Shipping Terms:

    Minimum Order Quantity: 5
    Price: Negotiation
    Packaging Details: Standard Paper Box on the Plywood Pallet
    Delivery Time: 7-10 Days after receive the payment
    Payment Terms: T/T or L/C at sight
    Supply Ability: 1500 per month
    Contact Now
    Detailed Product Description
    Material: Cold-sheet Function: Drying
    Control: Nitrogen Controller Color: Black Or White

    Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control



    Specifications:

    • Cabinets suitable for processing and storage of electronic components.
    • Humidity range:1% ~ 60% RH
    • Model :DCN8540L
    • Outside:W598*D710*H1465mm
    • Inside:W596*D682*H1298mm
    • Sheet:3pcs,Each with 100kg loading
    • Power:85V-265V,50HZ/60HZ
    • Weight: 70kg Capacity:540L
    • LED Display:yes(Honeywell)



    Applications:



    Suitable for storing: Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Mesuring tools,Electronic component,such as IC,BGA,etc.

    It can prevent them from oxygen and mildew, which are widely used in laboratory, electronic industry, hospital, research department.





    Nitrogen gas Cabinet

    ELECTRONIC COMPENENT USE

    Features:

    1)Humudity adjustable, energy saving design digital LED-Honeywell display and control, all the setting can be justified at the touch of the UP and DOWN bottom.

    2)1.0mm thickness steel body, rustproof paint, 3.2mm toughened glass, import sensor.

    3)Moisture absorbs continuously with sustention for 24hours

       Equipment with high performance, reliable desiccators and himidity controller located at the lower deep inside.

    4)Zinc alloy lock with plus pressure capability. Surface powder coating with RoHS certification.On the base truckle with brake .

    5)Slip layer board make the inter space adjustable.

    6)Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise.



    Remarks:

    All models can be chosed stainless material.

    With casters on the base

    Can choose Anti-ESD dark green color.

    Customized size accepted



    Digital Temp Display &  RH Control

    Electronic Nitrogen Dry Box / Auto Gas storage Cabinet Humidity Control                    Powder supply direct connection

                        No need of battery

    Digital LED-Honeywell display and control, with UP and DOWN bottom.



    Competitive Advantage:

    Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise



    Any size and spec are available for our customized Auto Nitrogen Gas Cabinet

    For storing and keeping moisture sensitive device (MSD) and oxygen sensitive device (OSD)

    Fast dehumidifying speed, the humidity of inner cabinet can drop down under 10%RH in several minutes

    Using micro-controller unit (MCU) to acquire digital data and real time control the nitrogen gas supply. When the humidity is below the set point value, the system will switch off the nitrogen gas supply. Once the humidity is higher than the set point value, the system will switch on the nitrogen gas supply. It will economize nitrogen gas.
