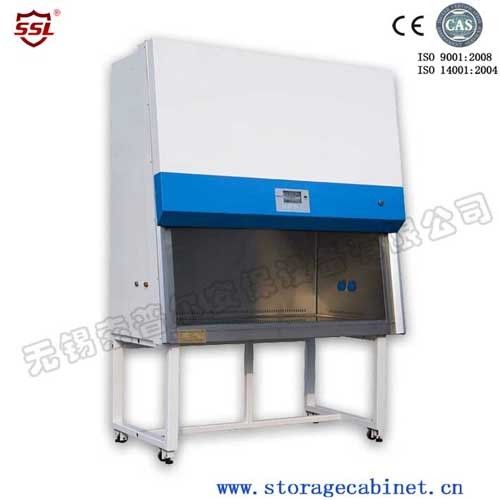

60 Db Class i Safety Chemistry Fume Vertical Laminar Flow Hood With Air Velocity 6 Levels

60 Db Class i Safety Chemistry Fume Vertical Laminar Flow Hood With Air Velocity 6 Levels

60 Db Class i Safety Chemistry Fume Vertical Laminar Flow Hood With Air Velocity 6 Levels

Product Details:

Place of Origin: CHINA
Brand Name: SSL
Certification: ISO9001&14001
Model Number: FH7-1800

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: Standard Paper Box on the Plywood Pallet
Delivery Time: 25-30 Days
Payment Terms: T/T or L/C at sight
Supply Ability: 1500 per month
Contact Now
Detailed Product Description

60 Db Class i Safety Chemistry Fume Vertical Laminar Flow Hood With Air Velocity 6 Levels

Production Description

  • UV lamp. Sterilize the working area.
  • LCD display screen. See the air velocity directly.
  • The pan is inside. Easy to install, save time.
  • The air velocity is adjustable ( 6 levels )
  • Electrical controlled glass.
  • Removable work surface. Easy to clean.

Name

Value

Brand

SSL

Model

FH7-1800

Base Cabinet

(Optional)

Height is 620mm, the exterior size include the cabinet height

Protection Class

Class I

Protection Type

IP 20

Air Velocity (m/s)

≥0.5m/s

Noise

≤60dB(A)

Pipe Collar

Φ290

Pipe Strap

1pc

Fluorescent Lamp

36W*1

UV Lamp

30W*1

Exhaust Duct

PVC, standard length: 4 meters

Blower

Centrifugal fan, speed adjustable. The fan inside the Fume Hood

Glass window

Two layer toughen glass, 5mm thickness; Motor control, height adjustable

Power supply

110-220V/50-60Hz(optional)

Power consumption

 800W-1400W



Standard Accessory

Water tap: One

Water cup: one

Gas tap: two

Air tap: one

Water proof socket: two

Material

Exterior body :Cold-roll steel sheets, coated with any-bacteria power

Interior: Adopts high grade melamine board with good acid and alkali resistance function

Work table: Using Solid Chemical-Resistant physiochemical board

Optional Accessory

Filter: 1.HEPA filter 2. Carbon active Filter 3. Chemical Filter

Ext. sizes(L*W*H)

1800×800×2200mm

Work size(L*W*H)

1620×670×750mm

Net Weight(kg)

300

Gross Weight(kg)

450

Warranty

One year

Application

FH series Fume hoods are the first defense to minimize chemical exposure to research workers. They are considered the primary means of protection from inhalation of hazardous vapors.

Production, package,transport

60 Db Class i Safety Chemistry Fume Vertical Laminar Flow Hood With Air Velocity 6 Levels

60 Db Class i Safety Chemistry Fume Vertical Laminar Flow Hood With Air Velocity 6 Levels

60 Db Class i Safety Chemistry Fume Vertical Laminar Flow Hood With Air Velocity 6 Levels
