CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet

CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet

    • CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet
    • CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet
    • CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet
    • CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet
  • CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet

    Product Details:

    Place of Origin: R.P. of China
    Brand Name: SOPERSL
    Certification: CE.SGS
    Model Number: DC87183LE

    Payment & Shipping Terms:

    Minimum Order Quantity: 5
    Price: USD900-1900
    Packaging Details: PAPER BOX
    Delivery Time: 10-15DAYS
    Payment Terms: TT,LC AT SIGHT
    Supply Ability: 1000PCS/MONTH
    Contact Now
    Detailed Product Description
    Color: Black Or White Material: Metal
    Style: Vertical

    CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet


    Applications:
    DC87183LE is equipped with a precise LED control, which has ±3%RH precision tolerance. It is especially designed with fully automatic humidity control at <10%RH to prevent any kinds of moisture damages. This cabinet is the perfect storage for SMT/BGA/PCB/LED components. The newly innovated design greatly increases dehumidifying system runs faster and more powerful compare to those of traditional dry cabinets. Hence, it decreases the defective rate at production line at the same time.

    Main Specifications of DC87183LE  Anti-esd Low Humidity Drying cabinet
    DC87183LE -Low Humidity Drying cabinet
    718-Litre
    5 Shelves (Adjustable),Each with 100kg loading
    3 doors, Manual
    Ext. Sizes W×D×H(mm/in): 598×710×1910/ 23.5×28×75 in
    Int. Sizes W×D×H(mm/in): 596×682×1723/ 23.4×27×68 in
    Weight: 85Kgs/ 187bs

    • Cabinet Size:598mm(W)x710mm(D)x1910mm(H)
    • Equipment with high performance, reliable desiccators and himidity controller located at the lower deep inside.

    • Display Precision Tolerance: ±1°C, ±3%RH

    • Cabinet Structure: 1mm thickness cold steel with antistatic paint, 1.2mm cold rolled plate.

    • Doors/windows: Handles, airtight magnetic sealers and temper glass.

    • Lock: Zinc alloy lock with plus pressure capability.

    • High intensity truckle with brake, 4 antistatic 3” wheels, 2 of them with brakes.

    • Power Consumption: Ave. 60W; Max. 420W

    • ROHS certification surface powder coating

    Market Segments

    • SONY
    • 3M
    • SIEMENS
    • IBM
    • TOSHIBA
    • SUMSUNG
    • NIKONAND SO ON



    Our Advantage

    •  High Quality
    • Reliable
    • Durable
    • Reasonable Price
    • Good after Service
    • 1 Year Warranty
    • More Than 10 Years Experience

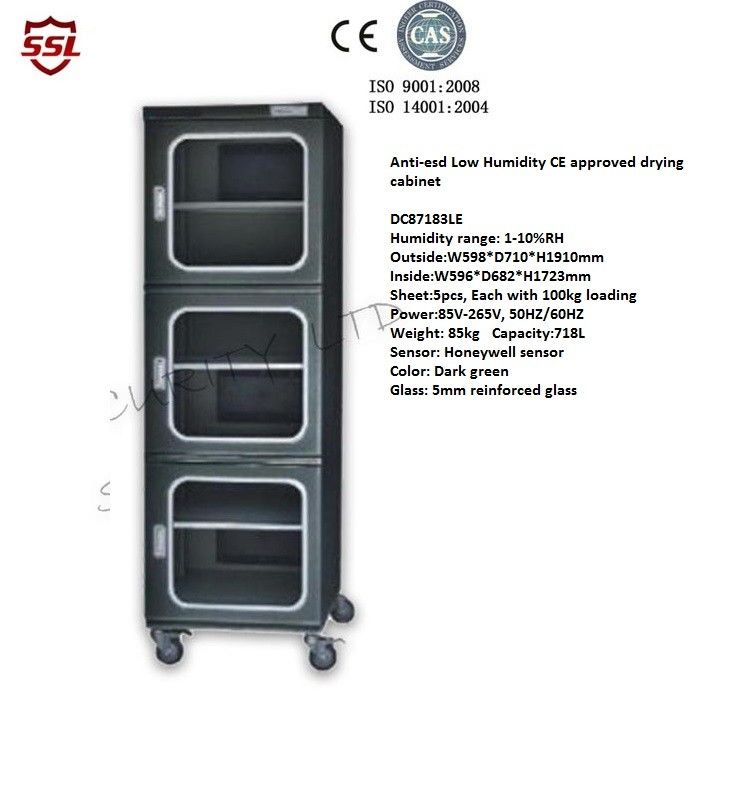

    Drying Cabinet Picture

    Digital Temp Display &  RH Control
     CE / Rohs Anti-esd Low Humidity Drying Moisture Proof Cabinet



    Instroduction


    With over than 10 years of experiences in Humidity Control Solution, SSL desiccators is especially designed and made to comply with J-STD-033/IPC.
    Not only do we focus on the performance of our products, we also incorporate Environmental Friendly design to all of our drying boxes and have helped out many reputable SMT / IT customers cutting their product defective rate to zero, and substantially saving them worth of hundred and thousands US dollars each year.
    Plastics bag-PE around-carton box OR crate box

    Competitive Advantage:
    Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise
    Dual digital hygrometer-Ecology Design
    Noisy free, vibration free, low humidity keeping at ambient temperature and long-term consecutive driving.
    Energy saving design: maintenance cost is only a very little electricity. It comes with humidity controller.
    No expendable supplies (Exchange free desiccant), very economical.
    No use of batteries for hygrometer.
    Long lasting and highly reliable.
    With detachable shelves, wide space is available to use.
    With high technology( photocatalyst, IC timer, shape-memory alloy and dual digital hygrometer)


    Do you know Moisture damamges?
    In general, most molds grow when humidity is higher than 60%RH. Dehumidifying Dry Cabinets are useful in preventing mold from growing.
    However, normal dry box storage cannot prevent the particular type of mold which grows under 20%RH. To protect your cameras from the general to particular molds, SSL Dry 01 series dry cabinets are the appropriate choice. There are three levels of humidity setting dial in 01 series cabinets; "High (50%)", "Standard (40%)" and "Low (30%)". Set the dial at the standard mode (40%) for the ideal humidity level to keep your camera lens from various molds.

    Best Storage Condition(%RH) for Different Material

    TYPE

    Best Storage  Condition(%RH)

          Moisture Sensitive Material

    TYPE 01

    30%-50%RH

    Optical,Photographic and Media Field: Lenses, Cameras, Microscopes ,Telescopes, Binoculars, Video cameras, Video tapes, Infrared cameras, Prism for lasers, Optical measurements apparatus, Films, Microphotographs, Picture films, CD/DVD, Microphone, Musical instruments,etc

    Paper Products,  Art and Medicinal Field: Printed matter, Label, Ancient documents, Cultural assets, Art, Industrial art, Excavated articles,stamp,medicinal materials,coffee,cigarette etc.

    Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Condensers, Resistances, PCB, Wafers, Filament, Lithium, Nickel batteries, Crystal oscillators, Gauges, Weight, Hygroscopic plastics, Metal, Non-ferrous metal, Welding rods, Metal powdery product, Ultrafine powdery alloy.

    TYPE 02

    30%-10%RH


    Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Mesuring tools,Electronic component,such as IC,BGA,etc.

    TYPE 03

    10%RH below


    Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Condensers, Resistances, PCB, Wafers, Filament, Lithium, Nickel batteries, Crystal oscillators, Gauges, Weight, Hygroscopic plastics, Metal, Non-ferrous metal, Welding rods, Metal powdery product, Ultrafine powdery alloy.
