Customized Desiccant Nitrogen Dry Box Rustproof Dehumidification

Customized Desiccant Nitrogen Dry Box Rustproof Dehumidification

Customized  Desiccant Nitrogen Dry Box Rustproof   Dehumidification
Customized  Desiccant Nitrogen Dry Box Rustproof   Dehumidification
Customized  Desiccant Nitrogen Dry Box Rustproof   Dehumidification
Product Details:
Place of Origin: CHINA
Brand Name: SSL
Certification: ISO9001
Model Number: DCN-S
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: Standard Paper Box on the Plywood Pallet
Delivery Time: 7-10 Days after receive the payment
Payment Terms: T/T or L/C at sight
Supply Ability: 1600 per month
Contact Now
Detailed Product Description
Style: Floor Standing Function: Dehumidification
Humidity Controll: Micro-controller Unit (MCU) Material: Stainless
Special: Rusty Proof Control: Nitrogen Drying

Customized Desiccant Nitrogen Dry Box Rustproof  Dehumidification





Applications:



Its typical applications include the prevention and protection against all types of oxidation (rust), the prevention of the growth of fungus on optics, the dry preservation of lab materials and samples as well as the protection of MSDs (moisture sensitive devices) as per IPC/JEDEC J-STD-033 within the electronics industry.
Suitable for storing: Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Mesuring tools,Electronic component,such as IC,BGA,etc.
It can prevent them from oxygen and mildew, which are widely used in laboratory, electronic industry, hospital, research department.



Specifications:

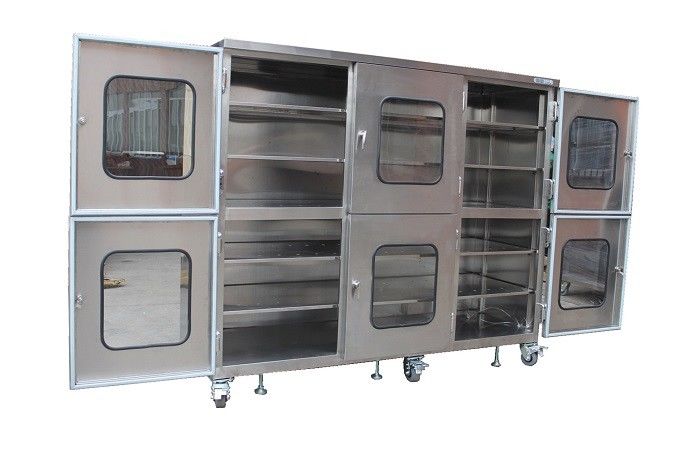

Customized  N2 gas Cabinet- Doors Type

Cabinets suitable for processing and storage of electronic components.

Humidity range:1% ~ 60% RH

Model :DCN Series

Outside: W1200-3000 × D600-1000 × H1900mm

Inside: W1198-2998 × D562-962 × H1713mm

Sheet: 5pcs,Each with 150kg loading

Power:85V-265V,50HZ/60HZ

Weight: 220-400kg Capacity:1000L-3000L

LED Display: yes(Honeywell)



Remarks:

All models can be chosed stainless material.

With casters on the base

Can choose Anti-ESD dark green color.

Customized size accepted



ELECTRONIC COMPONENT USE

Features:

1) Humudity adjustable, energy saving design digital LED-Honeywell display and control, all the setting can be justified at the touch of the UP and DOWN bottom.

2) 1.0mm thickness steel body, rustproof paint, 3.2mm toughened glass, import sensor.

3) Moisture absorbs continuously with sustention for 24hours

   Cost lowering through nitrogen (N2) gas replacement and combination N2 with other substance.

4) Zinc alloy lock with plus pressure capability. Strong, rusty proof stainless 304 material. On the base truckle with brake .

5) Slip layer board make the inter space adjustable.

6) Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise.



Customized  Desiccant Nitrogen Dry Box Rustproof   Dehumidification 0Customized  Desiccant Nitrogen Dry Box Rustproof   Dehumidification 1





Digital Temp Display &  RH Control



Customized  Desiccant Nitrogen Dry Box Rustproof   Dehumidification 2                    Powder supply direct connection

                    No need of battery

                    Digital LED-Honeywell display and control, with UP and DOWN bottom.





Competitive Advantage:

Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise



Any size and spec are available for our customized Auto Nitrogen Gas Cabinet

For storing and keeping moisture sensitive device (MSD) and oxygen sensitive device (OSD)

Fast dehumidifying speed, the humidity of inner cabinet can drop down under 10%RH in several minutes



Using micro-controller unit (MCU) to acquire digital data and real time control the nitrogen gas supply. When the humidity is below the set point value, the system will switch off the nitrogen gas supply. Once the humidity is higher than the set point value, the system will switch on the nitrogen gas supply. It will economize nitrogen gas.
