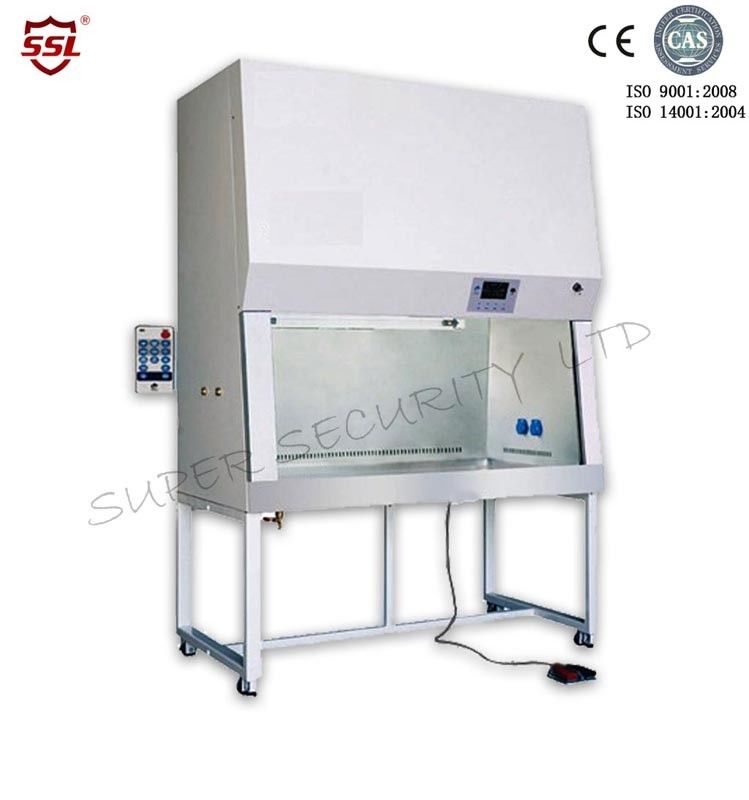

Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display

Product Details

Place of Origin: CHINA

Brand Name: SOPERSL

Certification: ISO9001:2008

Model Number: BSCIIA2

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiation

Packaging Details: Standard Paper Box on the Plywood Pallet

Delivery Time: 25-30 Days

Payment Terms: T/T or L/C at sight

Supply Ability: 1500 per month

Get Best Price
Highlight:

laboratory fume hoods

,

microbiological safety cabinets

,

304ss biosafety cabinet class 2 a2

Product Name:
Biological Safety Cabinet
Material:
304 Stainless Steel
Applications:
Potentially Infectious Materials
Power(W):
1200
Display:
VFD Display
Filter:
Two HEPA Filter
Product Name:
Biological Safety Cabinet
Material:
304 Stainless Steel
Applications:
Potentially Infectious Materials
Power(W):
1200
Display:
VFD Display
Filter:
Two HEPA Filter
Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display

304 Stainless Steel Biological Safety Cabinet Class II A2 With LCD display



Applications:

Biological safety cabinets are used to provide primary containment in the laboratory when the investigator is using potentially infectious materials.

Class II: The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.

ADVANTAGES:

1. Motorized front window.

2. Large LCD display, all information displayed.

3. Automatic air speeds adjustable with filter block.

4. With memory function in case of power-failure.

5. Side & back wall is made of single piece stainless steel

6. Single piece SS removable work tray.

7. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.

8. Front 100 slanted to offer operator comfort while working for long time, reduce glare and maximize reach in to work area.

9. Armrest is above the intake of grill to enable farther reach inside the cabinet without hampering safe airflows inside the cabinet working area.

10. All the positive pressure contaminated plenums within the cabinet are surrounded by a negative air pressure plenum thus ensuring that any leakage from a contaminated plenum will be drawn into the cabinet and not released to the environment.

Also the plenum to be under negative pressure to the room.

11. Differential pressure sensor for monitoring of condition of HEPA filters.





 Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display 0                                Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display 1

LCD Display                                                                       Work Zone

Large digital display is easy to monitor all the                   Work zone, made of 304 stainless steel,

safety parameters at a glance and ergonomically              is surrounded by negative pressure.

sized control panel improves user interface.



 Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display 2                                  Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display 3

Remote Control                                                                       UV lamp

All functions can be realized with it,                             making the Emission of 253.7 nanometers for most efficient

operation much easier and more convenient.              decontamination.

Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display 4                                      Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display 5



Front Window                                                                             Footmaster caster

Two-layer laminated toughened glass>5mm,                          Universal caster with brake and leveling feet.

                                                                                                  anti UV Adjust front window height by foot during

                                                                                                  experiment, to avoid airflow turbulence caused

                                                                                                   by arm movement.

Class A 2 Biological Safety Cabinet / Ducted Fume Cupboard With VFD Display 6

Foot Switch

Adjust front window height by foot during

experiment, to avoid airflow turbulence caused

by arm movement.





Technical Parameters of SOPERSL BSCII-A2
Model BSC-1100II A2 BSC-1300II A2 BSC-1500II A2 BSC-1800II A2 BSC-2000II A2
Internal size(mm) 900×600×660 1100×600×660 1300×600×660 1600×600×660 1800×600×660
External size(mm) 1100×850×2200 1300×850×2200 1500×850×2265 1800×850×2300 1950×850×2300
Tested Opening Safety Height = 200 mm (8'')
Max Opening 420mm(17’’) 420mm(17’’) 500mm(20’’) 550mm(22’’) 400mm(16’’)
Inflow Velocity 0.53±0.025 m/s
Down Flow Velocity 0.53±0.025 m/s
HEPA Filter Two, 99.999% efficient at 0.3 um. Filter life indicator.
Blower 2 2 1 1 1
Front Window Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.
Noise EN12469 ≤ 58 dB / NSF49 ≤ 61 Db
UV lamp 30W×1 30W×1 40W×1 40W×1 40W×1
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.
Illuminating Lamp 12W×1 12W×1 16W×1 16W×2 16W×2
Lighting (Lux) 800 800 800 800 800
Consumption (W) 760 800 900 900 1500
Water and Gas Tap Water Tap:1 Gas Tap: 1
Waterproof Socket Two, total load of two sockets: 500W
Display LCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc.
Control System Microprocessor
Airflow System: 70% air recirculation, 30% air exhaust
Material Work zone interior is made of 304 stainless steel
Main Body: Cold-rolled steel with anti-bacteria powder coating.
Base (optional) Height:635mm
Caster Wheel Directional wheel
Work Surface Height Height:750mm
Electrical Parameter AC220V±10%, 60/50Hz; 110V±10%, 60Hz
Net weight(kg) 213 250 236 325 350
Gross weight(kg) 243 280 316 395 420
Package (mm) (W×D×H) 1220×1000×1840 1460×1050×1800 1630×1000×1820 2000×950×1820 2090×1050×1860
Standard Accessory Illuminating lamp, UV lamp*2 ,Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2
Caster Foot master caster
Optional Accessory Water and gas tap, Height adjustable base stand



Competitive Advantage:

According to the performance criteria:

US Standard  ANSI/NSF49:2002  ;

European Standard  EN12469:2000 ;

Chinese Standard  YY0569-2005





About Payment Terms: We accept the following payment methods: T/T, Credit, Escrow.

About Delivery time:

Most of our products on sale are in stock, and will be delivered within 10-15 days. But still please confirm your order and detailed informaion with us.

About Photos: All products' photos are true and taken carefully by our Graphic Designer Team.

About After-Sales Service:

We're focusing on every client's satisfaction.

Professional team will solve any problems you met during the whole purchasing progress.



Package conform to international standards.

In general, the package is wooden or carton.

The goods will be delivery within 10-15 work days.
